How Checking Fixtures Improve Automotive Assembly Line Accuracy

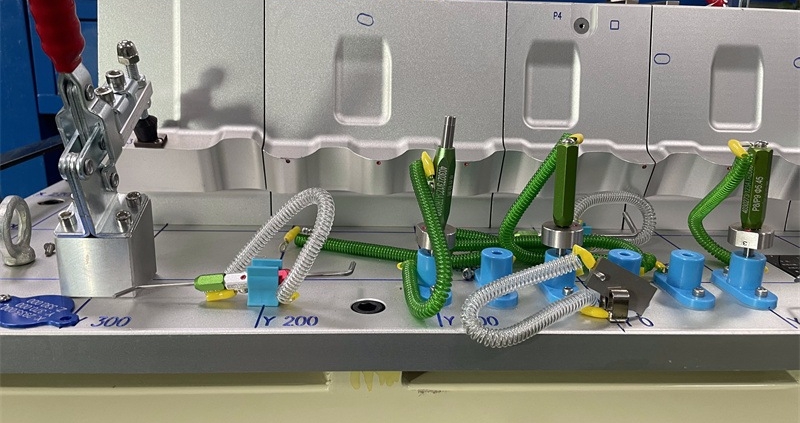

gage and checking fixture

Custom Inspection Fixtures: Precision Tools for Automotive Manufacturing

In automotive manufacturing, assembly line accuracy directly impacts vehicle safety and production costs. Checking fixtures (also called inspection fixtures) are critical quality control tools that solve three persistent challenges in automotive assembly line testing:

1. Low Efficiency
Traditional manual inspections take 20+ minutes per component, creating bottlenecks.
2. Human Error Risks
Visual fatigue causes 8%+ dimensional deviation misses in critical parts.
3. Data Blind Spots
Lack of digital tracking complicates defect root cause analysis.

3 Ways Checking Fixtures Transform Automotive Assembly Accuracy

1. Precision Component Validation

Custom-built checking fixtures using 3D CAD data:

  • Simulate real-world assembly conditions
  • Verify multi-point alignments (e.g., door-to-body gaps ≤0.5mm)
  • Test 15+ components simultaneously vs. manual single-part checks

2. Real-Time Process Optimization

  • Smart inspection fixtures with IoT sensors:
  • Provide live data on positioning errors (<0.02mm accuracy)
  • Enable immediate parameter adjustments via MES integration
  • Reduce scrap rates by 22% (Automotive News 2023 benchmark)

3. Predictive Quality Assurance
Automotive-grade checking fixtures:

  • Detect substandard parts before assembly
  • Generate automated PDF/Excel reports with defect heatmaps
  • Cut warranty claims by 17% through preventive measures

Key Selection Criteria for Automotive Inspection Fixtures:

Factor Industry Best Practices
Materials Aircraft-grade aluminum (MIL-A-8625 certified)
Measurement Tech Laser scanning + tactile probes hybrid systems
Customization OEM-specific GD&T requirements compliance
Data Integration Plug-and-play compatibility with Rockwell/ Siemens PLCs

Why Automakers Trust Professional Fixture Suppliers?

  • 30% faster new model ramp-ups through fixture-optimized workflows
  • ISO certified manufacturing processes
  • 16-year accuracy guarantee on all checking fixtures



/by
